Product Description

Lauxes Floor Grates are carefully designed and manufactured from triple anodised aluminium to create a robust, cost effective and versatile drainage solution for any indoor and outdoor wet area. With Lauxes Floor Grates there is no compromise on functionality or style when creating designer living spaces.

Key Features:

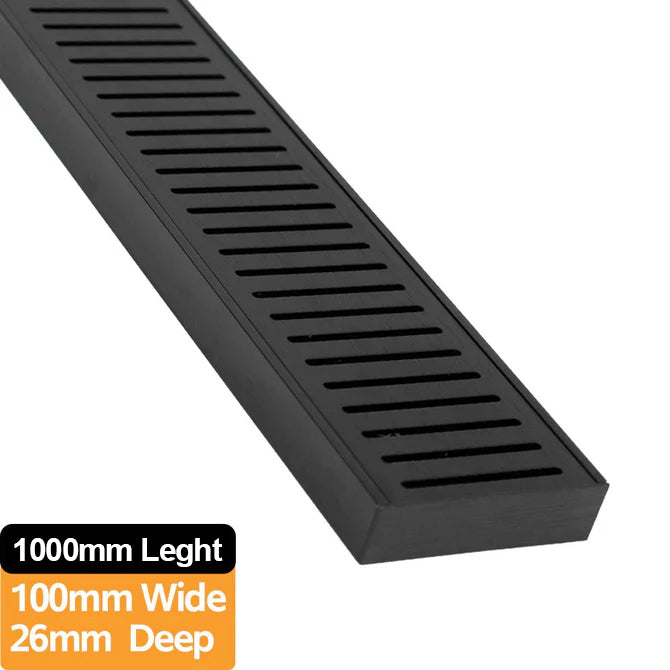

• Size: 1000mm (L) × 100mm (W) × 26mm (H)
• Waste Sizes: 40mm / 50mm / 80mm (choose as needed)
• Colour: Midnight Black
• Rustproof: Triple anodised aluminium – lifetime warranty
• Lightweight: Easy to handle and install
• Easy Cleaning: Top grate removed – roll out system
• Customisable: Easy to cut to desired length
• No Welding Required: Simple assembly
• Versatile Waste Positioning: Anywhere along bottom tray
• Applications: Indoor/outdoor wet areas, showers, pools

Package Includes

• 1 × Floor Drain (grate + bottom tray)
• 1 × Waste (40/50/80mm)
• 1 pair of end caps

Waste Size Guide

• 40mm: Single shower head
• 50mm: Double shower (two heads)
• 80mm: Greater water volume
• Multiple outlets: Pools, outdoor areas

Cutting & Assembly

Use compound mitre saw with 80+ tooth blade. Bimetal hole saw for waste outlet.

1. Cut bottom tray 3mm shorter than desired length
2. Cut top grate 1mm shorter than bottom tray
3. Drill waste hole at required position
4. Insert end caps with silicone on inside of tray
5. Secure waste with silicone to underside of tray

Helpful Resources

• How to cut and install Lauxes Floor Grate – Click here
• Adding silicone to end caps, waste and joins – Click here
• How to drill a hole for pop waste – Click here

Order this Lauxes 1000mm midnight black floor grate today.
