Product Features

• 304 Stainless steel bowl 0.8mm thick
• Anti-drip lip on pressed seamless polished stainless steel bowl
• These cabinet models are also available in a 360 wide option
• Bowl capacity to overflow for 560mm wide model is 23.3 ℓ
• Overflow discharge capacity for 560 model is greater than 30 ℓ/min
• Bowl waste discharge capacity for 560 model (without strainer plug) is 35 ℓ/min
• Washing machine bypass waste discharge capacity is 35 ℓ/min
• 90 degree stainless basket strainer waste
• Cabinet made of durable, water and corrosion resistant powder coated galvanised 0.6mm steel
• Door can be hung left or right
• Integrated tapware includes single lever mixer and concealed washing machine taps
• Cut-outs both sides for washing machine connection
• Easy to operate single lever handle on mixer
• Child-resistant catch
• A turning range that can be restricted within the unit
• Height easily adjustable via feet (approximately 15mm adjustment)
• Standard tap height approximately (≈) 350mm
• 5 Year warranty on stainless steel bowl against manufacturing defects
• 3 Year warranty on single lever mixer and laundry cabinet
• Waste outlet approximately 590mm to 605mm from ground depending on height adjustment on feet

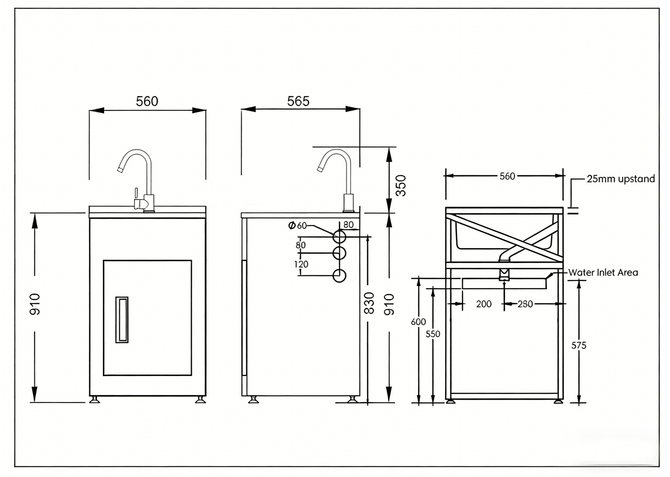

Area Allowed for Water Inlet Location:
• Maximum Height (from floor): 600mm
• Minimum Height (from floor): 550mm
• Recommended Height (from floor): 575mm
• Maximum Width (from Centre line): ±120 mm

Note: Inlets can be anywhere in this area provided they
do not interfere with trap or waste line
